Python LX MIG Welding Gun

Python® LX- Advanced Gooseneck


  • Models:             Air Cooled: (P/Ns below)
  • Models:             Water Cooled: (P/Ns below)
  • Models:             Compatible: MK, Lincoln, Miller, Fronius, ESAB and Euro (P/Ns below)
  • Lengths:           15 ft, 25 ft, 35 ft and 50 ft lengths

Description

The Python LX combines the robust engineering of the Python and the stylish design of the Cobra® MX. When connected with the Cobramatic wire feed cabinet, you get the best push-pull wire feed equipment for welding aluminum. Python LX returns precise and repeatable weld settings from 15 to 50 feet away.

Compatibility:

Direct plug-in connectors available for Lincoln, Miller, Fronius, ESAB and Euro wire feeders. Water and Air Cooled models: 15 ft, 25 ft, 35 ft and 50 ft lengths. (P/Ns below)

FEATURES

  • Compatible with different Cobramatic cabinets
  • Fingertip speed control protected in handle
  • Mechanical gas valve integrated with trigger function (bypass for full auto control)
  • Uses the legendary Cobra rear trigger configuration
  • Patented EZ-Lock® rotatable and tapered barrel design
  • 12” and 18” straight/curved Air & Water Cooled barrel options
  • Wire feed speed 800 IPM
Duty Cycle 100%
Rated Output
Rated Output

Rated Output determined by the gun having an Air Cooled (A/C) or Water Cooled (W/C) barrel.

Python LX A/C is 225 Amps
Python LX W/C is 400 Amps

Options / Compatibility

  • Optional Ultra Flex power cable offers more durability and less strain when welding. (Part Numbers below)
  • Air Cooled models can use the Flex Barrel for hard to reach welds
  • Capable of Aluminum Welding as well as Hard Wire Welding (Steel, stainless steel and flux core steel wires)

  • Plug-in direct compatibility with MK, Lincoln, Miller, Fronius, ESAB and Euro systems. (Part Numbers below)
  • Available in both Water Cooled and Air Cooled models
  • Available in Lengths: 15 ft, 25 ft, 35 ft and 50 ft

Part Numbers - MK and Compatible Guns

Compatible guns used with Lincoln Power Feed 25M (model K2536-4) require a kit for adaptability. Call factory for details.

Part Numbers
MK
Part Numbers
Lincoln 7 Pin
Part Numbers
Miller 14 Pin
Part Numbers
Fronius 9 Pin
Part Numbers
Euro 7 Pin
15ft AC:   260-815
25ft AC:   260-825
35ft AC:   260-835
50ft AC:   260-850

15ft WC:   261-815
25ft WC:   261-825
35ft WC:   261-835
50ft WC:   261-850
270-815
270-825
270-835
270-850

271-815
271-825
271-835
271-850
272-815
272-825
272-835
272-850

273-815
273-825
273-835
273-850
274-815
274-825
274-835
274-850

275-815
275-825
275-835
275-850
294-815
294-825
294-835
294-850

295-815
295-825
295-835
295-850

Consumables Overview

  • Snake Skin (Standard)
  • 931-0110 15ft
  • 931-0122 25ft
  • 931-0132 35ft
  • 931-0123 50ft

  • Consumables
  • Barrels and Gas Cups
  • Contact Tips
  • Tip extenders
    (P/Ns below)
Air Cooled / Water Cooled
Air Cooled and Water Cooled Consumables
  • More Consumables
  • Barrel Liners
  • Drive rolls
  • Tips for Hard Wire
  • Wire Type and Diameter
    (P/Ns below)


Consumables
More Consumables

Consumables - Cups and Tips Connectivity

Extend Your Reach and Save Barrel Tip Threads

Not only can tip extenders extend the reach of your gun, but they also protect the threaded end of your barrel from damage. Some extenders are stackable and some are not – see below to determine. Adapters allow you to change the output rating on your guns by changing the contact tip and gas cup configuration to a “beefier” tip & cup configuration. View Connectivity Guide for Water Cooled configuration.

Barrel Tip Extender Adapter Contact Tip Gas Cup
Barrels
Barrels
Python/LX/Prince XL
AC & A/W
Tip Extenders
P/N 621-0424
NON stackable
Adapters
Not Applicable
Contact Tips
3/8 inch diameter

Gas Cups

Finned Copper A/C

More Consumables

Barrel Liners: Aluminum
Teflon
931-0137

Barrel Liners: Hard Wire Spiral Steel Liner
615-0343
615-0258
615-0259
615-0338 (Python only)

Hard Wire - Flex Barrel Spiral Steel Liner
(Python, Python LX)
615-0261-12, 615-0261-18
615-0261-24, 615-0261-36

Read More

wire
Wire Type and Diameter

Solid and Hard wire
.030” - .045”
(0.8 mm - 1.1 mm)


Aluminum and
Cored wire

.030” - 1/16”
(0.8 mm - 1.6 mm)

Drive Rolls

Additional Enhancements For Aluminum Capabilities

Drive Roll Kits:

  • Knurled (Standard)
  • Insulated Grooved (Opt)
  • Insulated Knurled (Opt)

  • Drive roll installation / removal tool (931-0100)

For P/Ns Read More

Contact Tips for Hard Wire

Steel, Stainless and
Flux Core Steel wire


3/8” Contact Tips
Python LX XL MAX MXmax

.030”(0.8 mm) 621-0396-25
.035”(0.9 mm) 621-0397-25
.045”(1.1 mm) 621-0398-25

Read More

Gun Lead Assembly Components - MK AND COMPATIBLE GUNS

U.S. Customary Units / Metric: 15 ft/4.6m, 25 ft/7.6m, 35 ft/10.7m, 50 ft/15.2m

Hoses

MK Lincoln Miller Fronius Euro
MK Classic Connections to wire feeder

Gas Hose

552-0242-15
552-0242-25
552-0242-35
552-0242-50

Water Hose MK

552-0243-15
552-0243-25
552-0243-35
552-0243-50

---

---
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0238-15
552-0238-25
552-0238-35
552-0238-50

Water Hose Red

552-0211 all lengths
MK Classic Connections to wire feeder

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths

Cables

MK Lincoln Miller Fronius Euro

Control Cable

005-0690
005-0691
005-0740
005-0692

Power Cable (AC)

843-0630-15
843-0630-25
843-0630-35
843-0630-50

Power Cable (WC)

005-0387-15
005-0387-25
005-0387-35
005-0387-50

Power Cable
Ultra Flex (AC only)

843-0580-15
843-0580-25
843-0580-35
843-0580-50

Control Cable

005-0690
005-0691
005-0740
005-0692

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Control Cable

005-0380-15
005-0380-25
005-0380-35
005-0380-50

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Control Cable

005-0381-15
005-0381-25
005-0381-35
005-0381-50

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Control Cable

005-0690
005-0691
005-0740
005-0692

Power Cable (AC)

843-0640-15
843-0640-25
843-0640-35
843-0640-50

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0715-15
843-0715-25
843-0715-35
843-0715-50

Conduits

MK Lincoln Miller Fronius Euro

Aluminum Welding Only
- Conduit

615-0601-15
615-0601-25
615-0601-35
615-0601-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0208
615-0216
615-0219
615-0218

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Water Cooled Connections - Interchangeable Fittings for Compatible Guns

Fittings: For Water Cooled Connections: MK compatible guns have interchangeable fittings, so you can match as needed for your cooler.

Hose Retainer: Both fittings require a hose retainer. Call factory for pricing.

Retainer Part Number Fitting Part Number Fitting Part Number

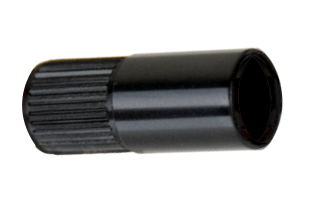

Hose Retainer 431-1898 431-1898
5/16” Hose Retainer
Quick Connect Fitting 431-1910 431-1910
Quick Connect
Fitting
753-3379 Fitting with Nipple 431-1893 431-1893* Nipple
753-3379* Left-Hand
Threaded Fitting
*Must be ordered together

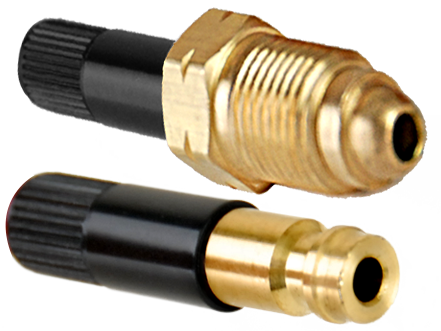

Both Fittings with Retainer Both fittings shown with a hose retainer Cobra Coolant For Water Cooled Guns.

For best performance use only Cobra Coolant.

Cobra® Coolant

Failure to use Cobra Coolant will void warranty.

Cobra Coolant

931-0060: 1 Gal (3.78 L)
931-0060-4: 1 Case-qty 4
931-0060-5GAL: 18.92L

Owners Manuals - MK and Compatible Guns

Click on images of each Manual to open PDF.

MANUAL MK MANUAL Lincoln 7 Pin MANUAL Miller 14 Pin MANUAL Fronius 9 Pin MANUAL Euro 7 Pin

Related Products

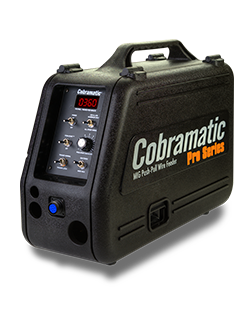

Cobramatic Wire Feeder
